D6V7-DDCM-C-SUP-RES2
D6V7-DDCM-C-SUP-RES2 - SmartDedupe & SmartCompression Software License General Edition

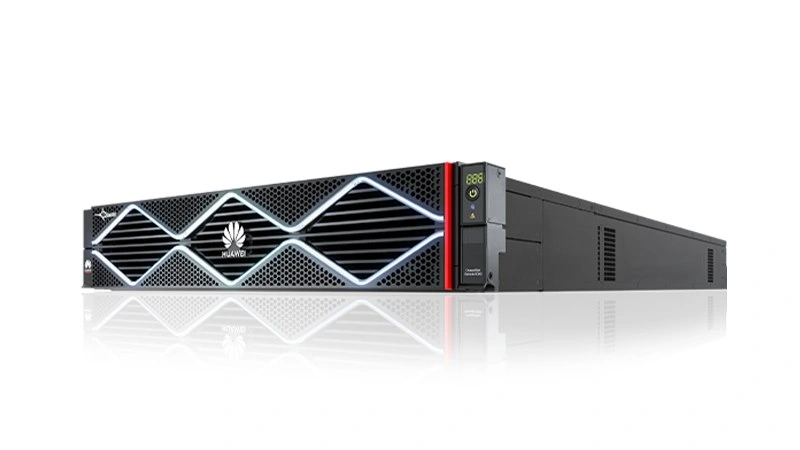

HUAWEI Storage System — D6V7N-2C1T-O-E
D6V7N-2C1T-O-E - OceanStor Dorado 6000 (2U,Dual Ctrl,NVMe,AC V HVDC,1TB Cache,4*100Gb RDMA,36*Palm,SPE64C0236,V7,Applicable to
HUAWEI
In stock
The D6V7N-2C1T-O-E is a Huawei component. OceanStor Dorado 6000 (2U,Dual Ctrl,NVMe,AC V HVDC,1TB Cache,4*100Gb RDMA,36*Palm,SPE64C0236,V7,Applicable to 1.2m-Depth Cabinets,C13). We supply D6V7N-2C1T-O-E from stock. Contact us for current availability, condition and pricing.
| Back-End Onboard Ports | 4 x 100 Gbit/s RDMA |
|---|---|
| Back-End Port Types | SAS 3.0, 100 Gbit/s RDMA |
| Cache | 1TB |
| Cache Per Controller Enclosure | 1024 GB - 2048 GB (1 TB as supplied) |
| Compatible Systems | Windows, Linux, VMware, UNIX (per Huawei new-gen datasheet 'Supported Clients'); containers: CSI, CDR, CSM |
| Controllers | Dual |
| Controllers Per Enclosure | 2 |
| Data Reduction | SmartDedupe + SmartCompression inline; Huawei's all-flash page states up to 5:1 guaranteed deduplication and compression for the New-Gen (V7) Dorado line |
| Dimensions | NVMe controller enclosure (2U): 86.1 mm x 447 mm x 920 mm |
| Drive Slots | 36x 3.5in palm (NVMe) |
| Enclosure Depth | Fits 1.2 m-depth cabinets |
| Form Factor | 2U rack |
| Front-End Port Types | 16/32/64 Gbit/s FC; 1/10/25/40/100 Gbit/s Ethernet; 25/100 Gbit/s RoCE |
| Host Interfaces | 4x 100Gb RDMA |
| I/O Module Slots Per Controller Enclosure | 12 |
| Internal BOM Code | SPE64C0236 |
| Key Features | SmartMatrix full-mesh, FlashLink 3.0, HyperSnap, HyperClone, HyperCDP, HyperMetro (gateway-free A-A for SAN/NAS/S3), HyperReplication, HyperLink, HyperEncryption, HyperDetect, HyperLock, SmartThin, SmartQoS, SmartMulti-Tenant, SmartDedupe, SmartCompression, SmartMigration, CloudVxLAN |
| Management Software | DeviceManager, DME, DME IQ, OceanStor BCManager; client software UltraPath and NFS+ |
| Max Controllers | 32 (datasheet range: 2-32 controllers) |
| Max Host Ports Per Controller Enclosure | 48 |
| Media | NVMe all-flash |
| Operating Environment | 5-35 C (cabinet) or 40 C (enclosure) up to 1800 m, derating 1 C per 220 m above that; 10-90% RH |
| Part Number | D6V7N-2C1T-O-E |
| Part Type | Storage System |
| Performance Class | New-gen Dorado 6000: mid-range converged all-flash, up to 3x the performance of the V6 generation per Huawei |
| Power Input | AC / HVDC |
| Power Supply Range | Controller enclosure: 100-240 V AC +/-10% or 192-288 V DC (HVDC); C13 power inlet per supplier description |
| Product Generation | V7 (Huawei 'New-Gen'); 1 TB cache per controller enclosure is the V7 Dorado 6000 entry point (V6 Dorado 6000 started at 1 TB system cache and scaled to 24 TB) |
| Product Series | OceanStor Dorado 6000 V7 (Huawei 'New-Gen OceanStor Dorado 6000') |
| Protocols | FC, FC-NVMe, iSCSI, NVMe over RoCE, NVMe over TCP, NFS, SMB, NFS over RDMA, S3 (block + file + object converged) |
| RAID Levels | RAID 5, RAID 6, RAID 10, RAID-TP (tolerates 3 simultaneous disk failures) |
| Redundancy | N+1 redundant, hot-swappable power supplies and fans; dual active-active controllers; five-level reliability design |
| Supported SSDs | 3.84 TB / 7.68 TB / 15.36 TB / 30.72 TB NVMe SSD and NVMe SED (36 palm-sized NVMe slots) |
| Weight | NVMe controller enclosure <= 50 kg |
| Brand | HUAWEI |
| Condition | Any |
| Availability | In stock — bulk pricing on request |
Interested in this equipment?
Send us quantity and target market — we reply with pricing and lead time within one business day.
Request a Quote Browse new Storage productsSimilar Equipment
More HUAWEI D6V equipment we stock
D6V7-LBS-Super
D6V7-LBS-Super - SAN License Bundle (Including Thin,Snap,Replication,Clone,QoS,Erase,DME IQ,Virtualization,Metro,CDP,Multi-Tenant)

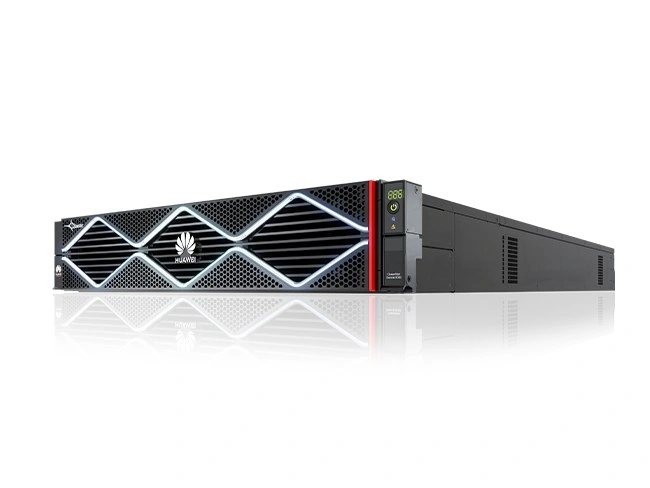

D6V7S-2C1T-EU
D6V7S-2C1T-EU - OceanStor Dorado 6000 (2U,Dual Ctrl,SAS,AC V HVDC,1TB Cache,4*(4*12Gb) SAS,25*2.5",SPE52C0225,V7)
