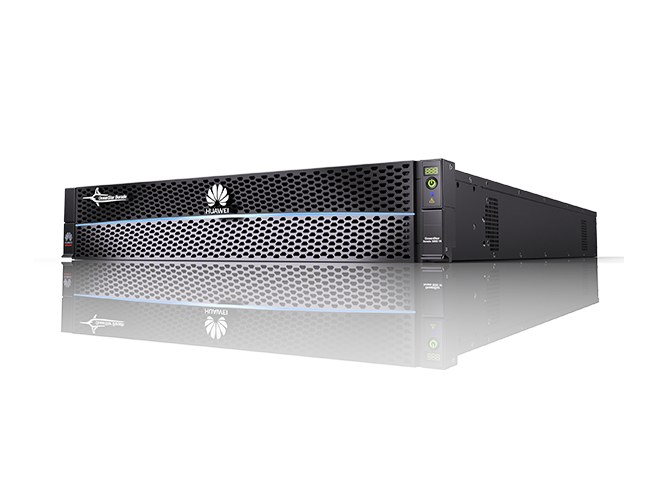

HUAWEI Storage System — 5210V6-S-L-128G-AC
- Part Number
- 5210V6-S-L-128G-AC
- Manufacturer
- HUAWEI
- Condition
- Any
- Category
- Storage
In stock
The 5210V6-S-L-128G-AC is a Huawei component. 5210(2U, Dual Controllers, SAS,AC V HVDC, 128GB Cache, 8*1Gb ETH,4*10Gb ETH(Including Multi-Mode SFP+),4*SAS3.0 port,12*3.5 Inch SAS,SPE26C0212). We supply 5210V6-S-L-128G-AC from stock. Contact us for current availability, condition and pricing.
Specifications
| Back-End Port Types | SAS 3.0 |
|---|---|
| Cache | 128GB |
| Cache Range | 128 GB - 512 GB (dual controller, expands with controllers); 128 GB as supplied |
| Compatible Systems | Mixed block + file (SAN + NAS) clients; heterogeneous virtualization via SmartVirtualization; container services (CSI) - Huawei 5210/5x10 datasheet value-added feature list |
| Controller Activity Mode | Fully balanced active-active; gateway-free A-A for both SAN and NAS; single LUN delivers >90% of system performance |
| Controllers | Dual |
| Controllers Per Enclosure | 2 |
| Dimensions | 3.5-inch controller enclosure (2U12): 86.1 mm x 447 mm x 600 mm; 2.5-inch controller enclosure: 86.1 mm x 447 mm x 520 mm; SAS disk enclosure 86.1 x 447 x 410 mm; NL-SAS disk enclosure 175 x 447 x 488 mm |
| Form Factor | 2U rack |
| Front-End Port Types | 8/16/32/64 Gbit/s FC; 1/10/25 Gbit/s Ethernet |
| Host Interfaces | 8x 1Gb ETH; 4x 10Gb ETH(Including Multi-Mode SFP+; 12x 3.5 Inch SAS |
| I/O Module Slots Per Controller Enclosure | 4 (hot-swappable) |
| Internal BOM Code | SPE26C0212 |
| Key Features | SmartAcceleration, SmartThin, SmartCompression, SmartDedupe, SmartQoS, SmartQuota, SmartMulti-Tenant, SmartVirtualization, SmartMigration, SmartMobility, SmartMove, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperEncryption, CloudVxLAN, NFS+ |
| Management Software | DeviceManager, UltraPath, DME IQ |
| Max Controllers | 8 |
| Max Host Ports Per Controller Enclosure | 28 |
| Media | SAS |
| Operating Environment | 5-35 C (cabinet) or 40 C (enclosure) up to 1800 m, derating 1 C per 220 m above that; 10-90% RH |
| Part Number | 5210V6-S-L-128G-AC |
| Part Type | Storage System |
| Power Input | AC / HVDC |
| Power Supply Range | 100-240 V AC +/-10%, 192-288 V DC (HVDC) and -38.4 V to -75 V DC |
| Product Series | OceanStor 5210 (V6-generation hybrid flash; Huawei 'New-Gen OceanStor 5210/5310/5510/5610' family) |
| Protocols | FC, iSCSI, NFS, CIFS, SMB, NDMP (Huawei product page additionally lists S3 for the 5210) |
| RAID Levels | RAID 5, RAID 6, RAID 10*, RAID-TP (tolerates 3 simultaneous disk failures) |
| Redundancy | N+1 redundant, hot-swappable power supplies and fans; dual active-active controllers |
| Reliability Options | Geo-redundant 3DC / 4DC DR solutions; SAN + NAS ransomware protection with Air Gap; SOCC (Storage-Optical Connection Coordination) link switchover within 2 seconds |
| Supported Disk Types | SAS SSD, SAS (HDD), NL-SAS - hybrid flash, matching the 12 x 3.5-inch SAS bays in this line |
| Weight | 3.5-inch controller enclosure 24.1 kg (excl. disk units); 2.5-inch controller enclosure 23.75 kg |
| Brand | HUAWEI |
| Condition | Any |
| Availability | In stock — bulk pricing on request |
